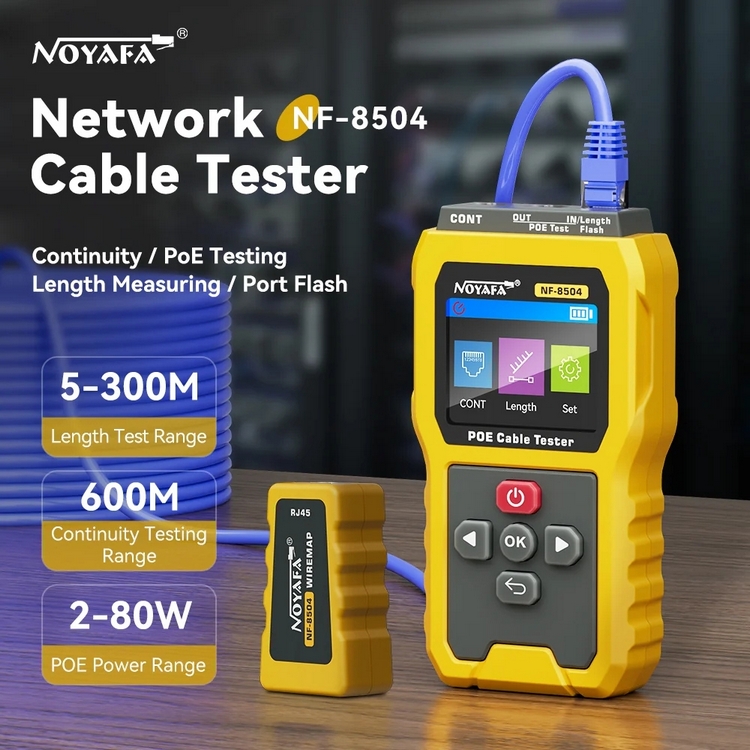

| Тестер сетевого кабеля, PoE тестер Noyafa NF-8504 |
Features & Benefits: - Continuity & Wiremap: Instantly verify each pair on CAT5/CAT6 cables for open/short or miswiring, preventing downtime.

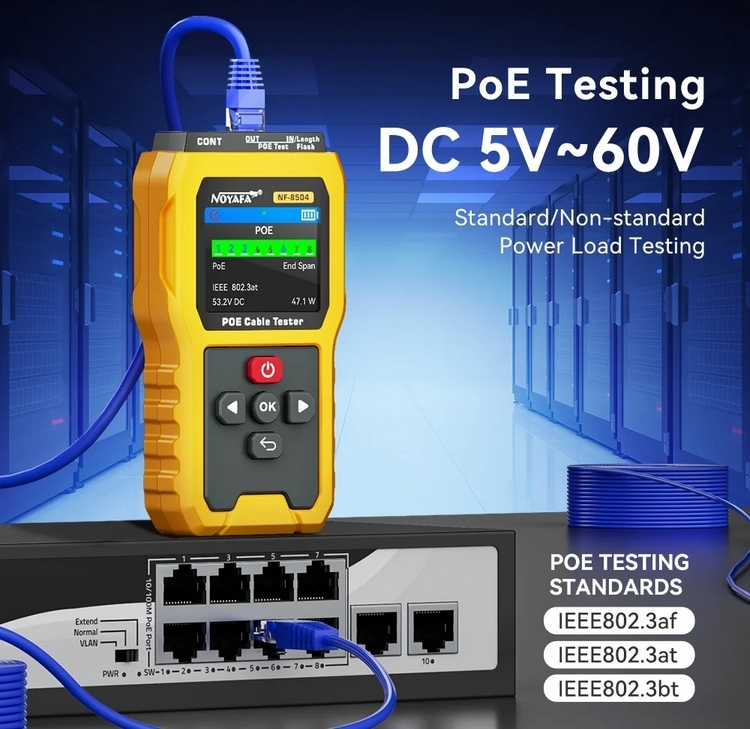

- PoE Testing (DC 5–60 V): Support IEEE802.3af/at/bt standards and non-standard loads; ensures safe PoE power delivery.

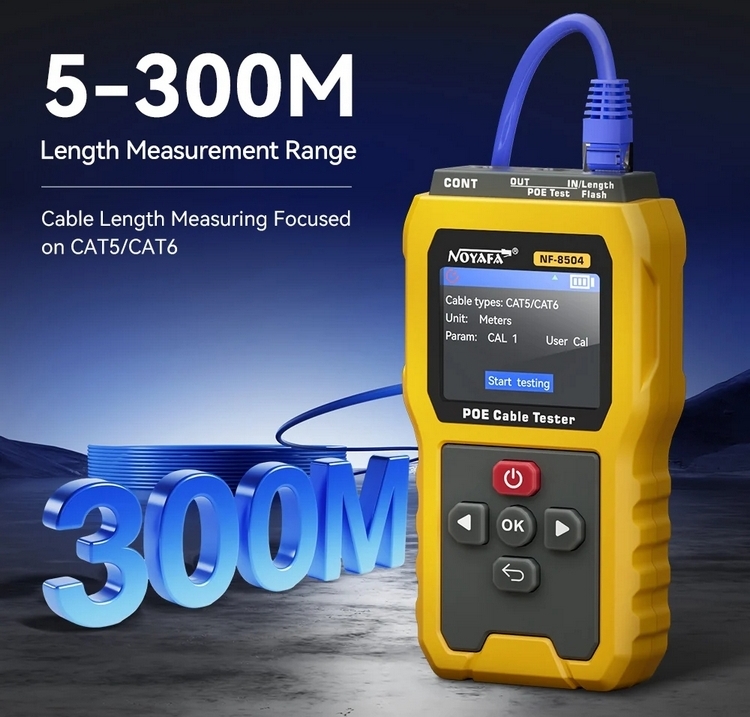

- Length Measurement (5–300 m): Pinpoints cable breaks or distance to fault up to 300 m, saving time on cable runs.

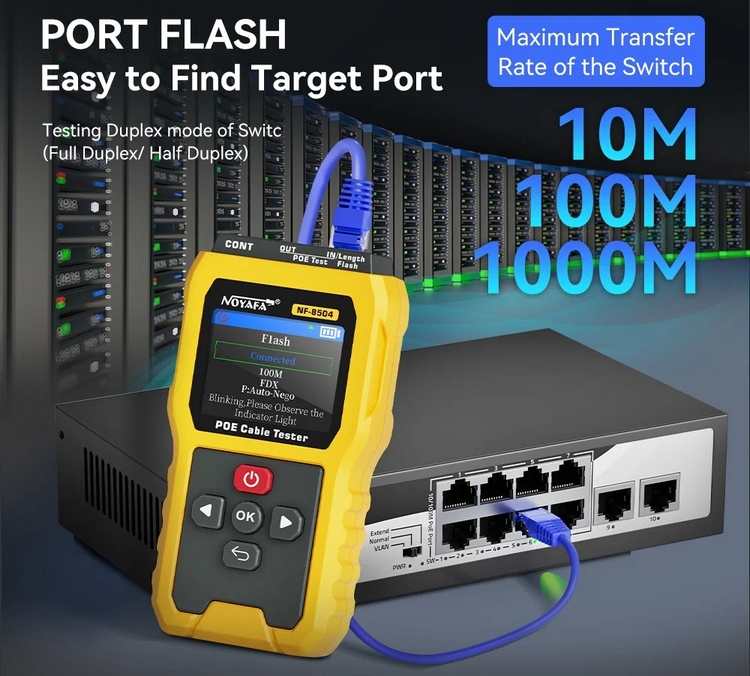

- Port Flash (10/100/1000 Mbps): Quickly identify active switch ports and duplex mode (full/half) by flashing link LEDs.

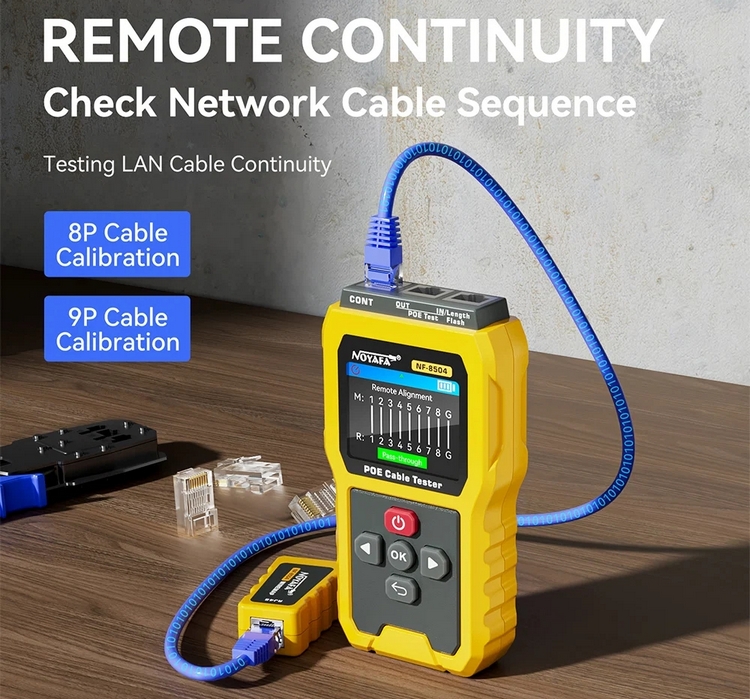

- Remote Continuity Alignment: Includes a detachable RJ45 remote to check cable sequence in-wall or across patch panels.
- 2.4″ Full-Color LCD: Large, easy-to-read screen displays test modes, icons and results at a glance—even in low light.
- Anti-Burning Protection (≤ 60 V): Safeguards the tester against accidental live voltage up to 60 V, prolonging device lifespan.

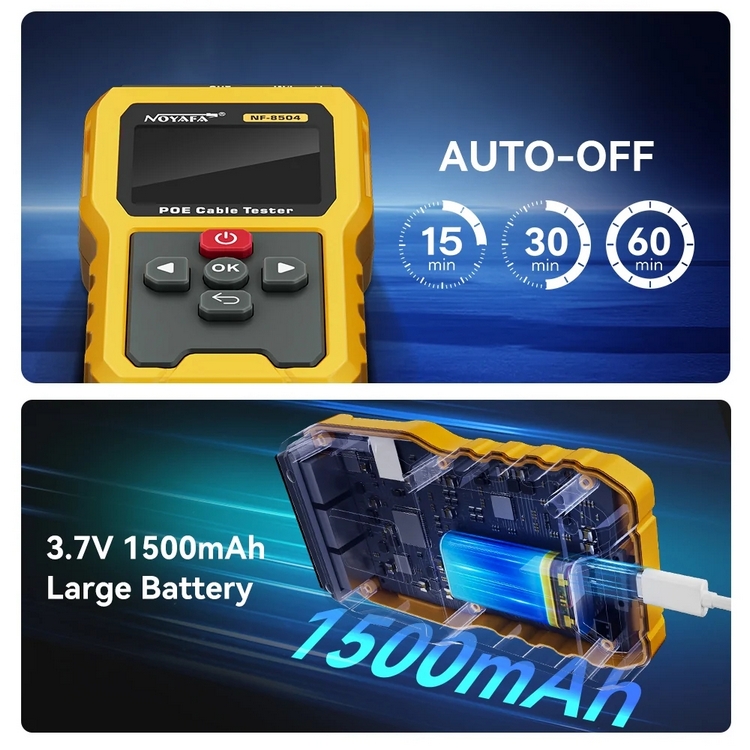

- 3.7 V 1500 mAh Rechargeable Battery: Delivers hours of continuous use; USB-C charging means no more disposable batteries.
- Auto-Off: Conserves battery life by powering down after 5/15/30/60 minutes of inactivity.
KEY SPECS: - LCDDisplay: 2.4 Color Screen
- Continuity Testing:
- Cable Type: CAT5/CAT6
- Testing Range: 600m
- STP&UTP √
- Short Circut √
- POE Testing：
- Range: DC5V~60V
- Standards: IEEE802.3af/at/bt
- Load Testing: 2~80W
- POE Output √
- Power Supply Pin √
- Port Flash Function √
- Length Measurement Range: 5~300m
- Low Battery Indicator √
- Battery: 3.7V 1500mAh Lithium Battery
- Auto Off: 15m/30m/60m/OFF
- Anti- burning Level: DC60V
- Dimension: 138.5×76×30mm
Manual Noyafa NF-8504
|
|
|
|
