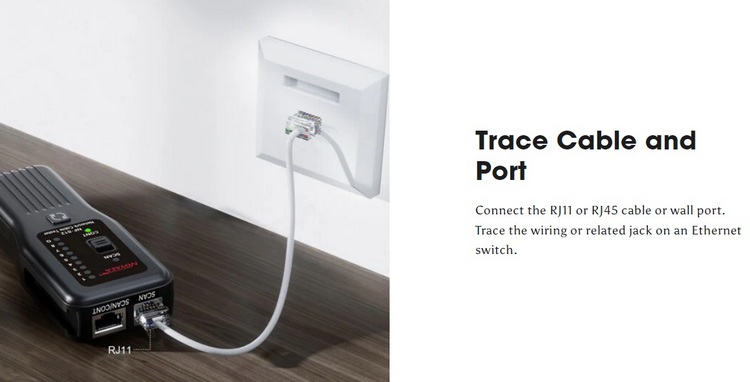

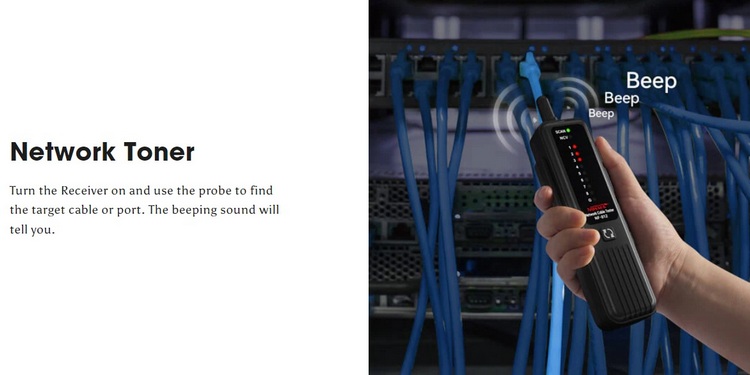

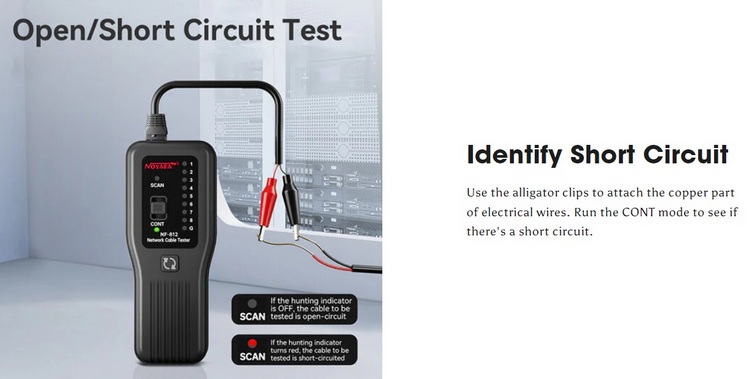

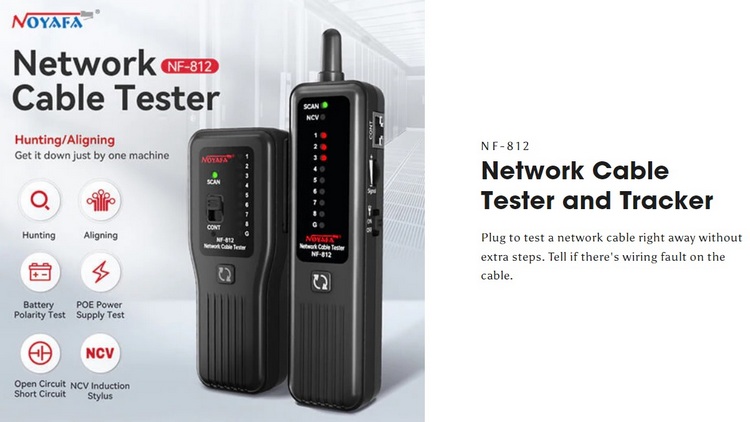

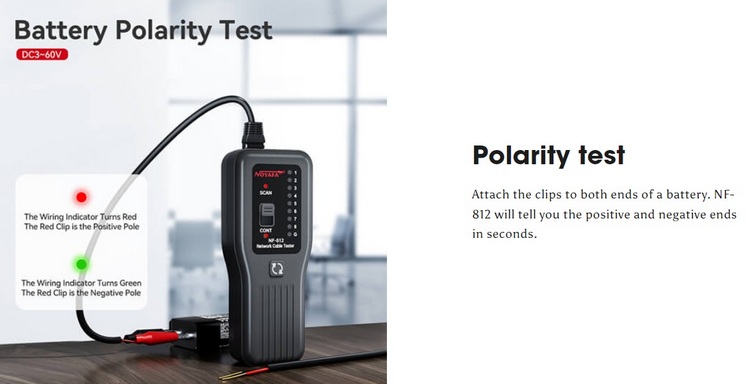

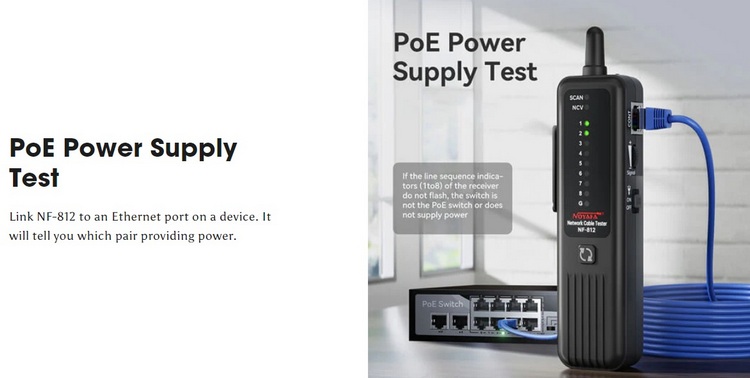

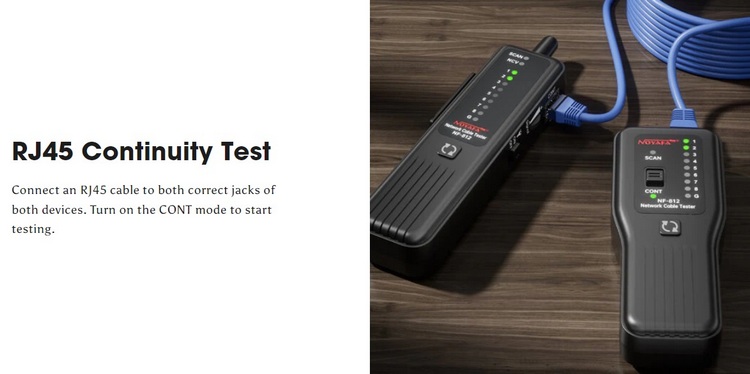

Features and Benefits: RJ45 & RJ11 Tester: Run continuity test for CAT5 & CAT6 cables and telephone lines to find shorts, opens, breaks, and crosses. Network Toner: Connect one end of the cable to the Emitter device. Use the toner probe to find the other end of the cable even if it is connected to an Ethernet switch. It also helps to pair a wall Ethernet port to the target port on a router. Circuit Tester: Attach the alligator clips to the copper part of a live circuit. Identify a short or open circuit in one sec. Voltage Protection: Supports to test cables or wires with up to 100V power. PoE Power Supply Check: Connect the Ethernet switch to NF-812 with an RJ45 cable. Run a PoE test to tell the wires that provide power. Polarity Test: Attach to identify the positive and negative ends of a battery.
Specifications: - Cable Scan: Digital Cable Scan
- Cable Continuity Test: Fast/Slow
- PoE Test: yes
- Power Indicator: yes

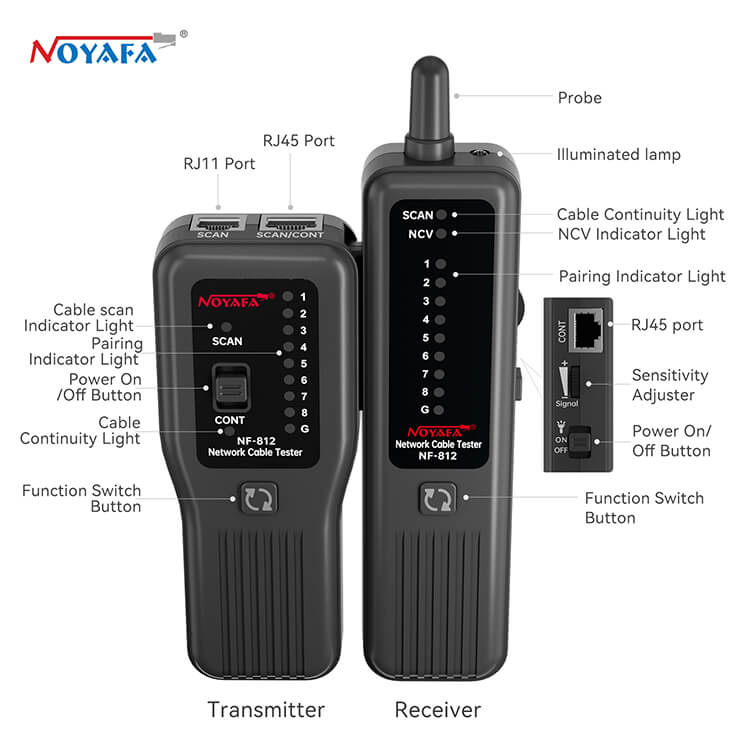

Transmitter: - Open/Short circuit testing: Scan tracing indicator not lit/
- Red light lit
- Battery polarity testing: DC 3~60V.
- Power supply: DC 9V (exclusive)
- Shutdown current: ≤10uA
- Max operating current: ≤20mA

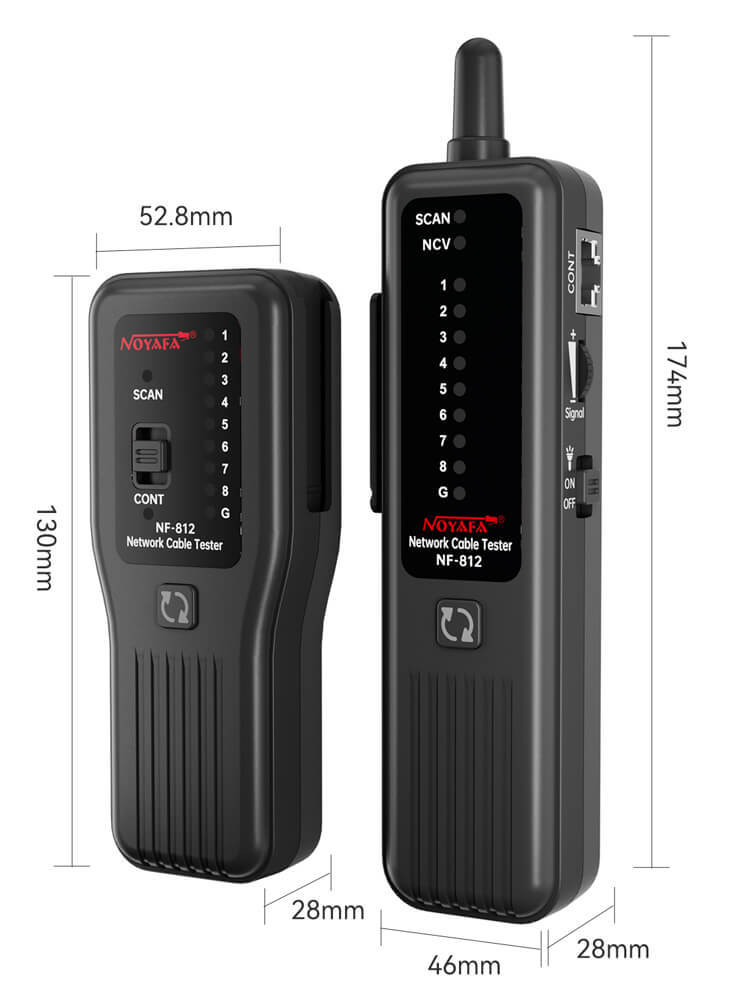

- Transmitter size: 130x52.8x28mm

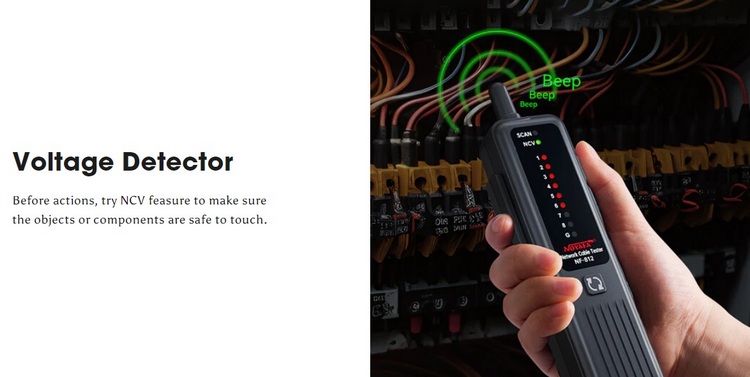

Receiver: - NCV: ✓
- LED Lighting: ✓
- Power supply: DC 9V (exclusive)
- Shutdown current: ≤10uA
- Max operating current: ≤150mA
- Receiver size: 174×46×28mm
MANUAL NF-812
|
