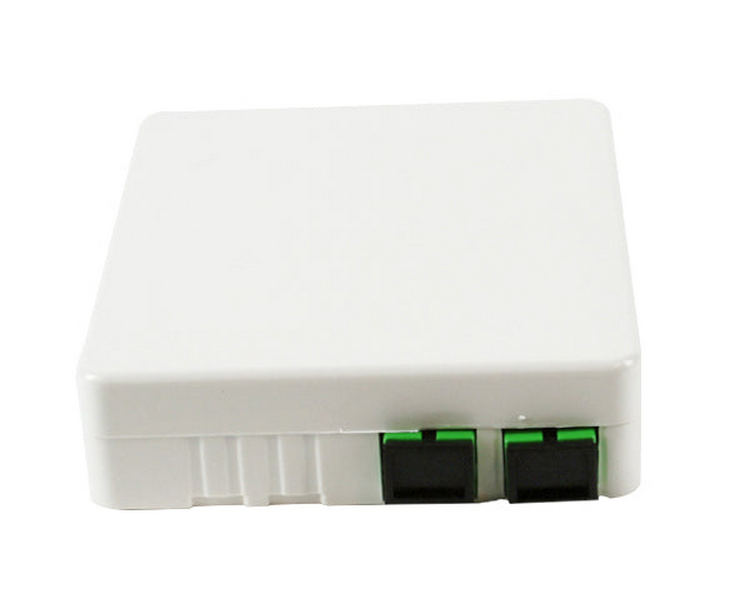

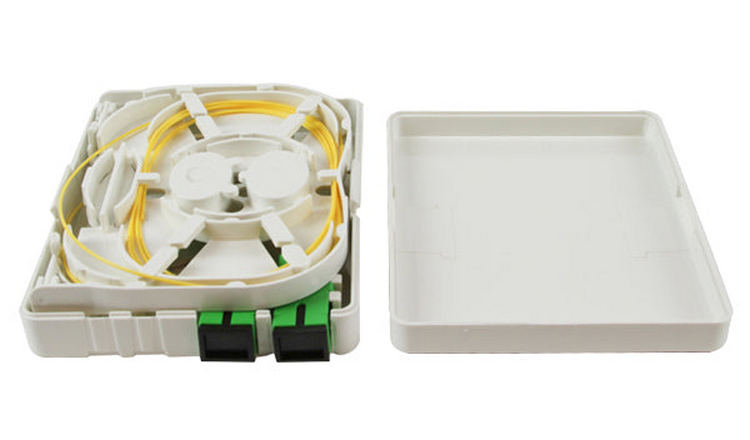

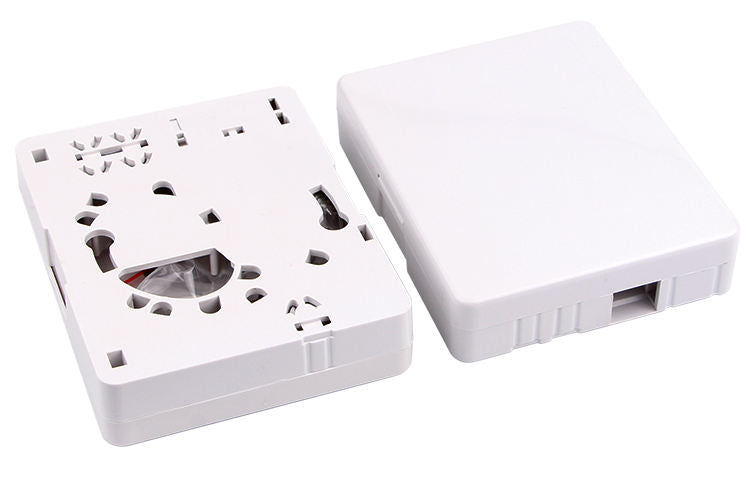

The 2 fiber wall outlet is a termination box works as a decoration point for optical fiber in home or office, which is used to connect drop cable at customer site to desktop ONT through jumper. This small unit provides fiber splicing and storage for indoor wall mount application, the module designed to bring fiber to desk or living unit and widely used in the residential or business premises. This fiber terminal box come with 2 outlet in the front for SC adapters, it can be flush mounted in indoor living room for FTTH network. It is of ABS plastic providing mechanical protection; internal routing allows for the slack management and reasonable fiber radius; There are 3 entry position at the base, front and side for flexible deployment. The wall plate enables easy, simple and quick drop cable connection within the home or office.
Features： - Made of ABS plastics or flame-retardant ABS
- Small size taking up minimal wall space
- 2 adapter interface for easy installation

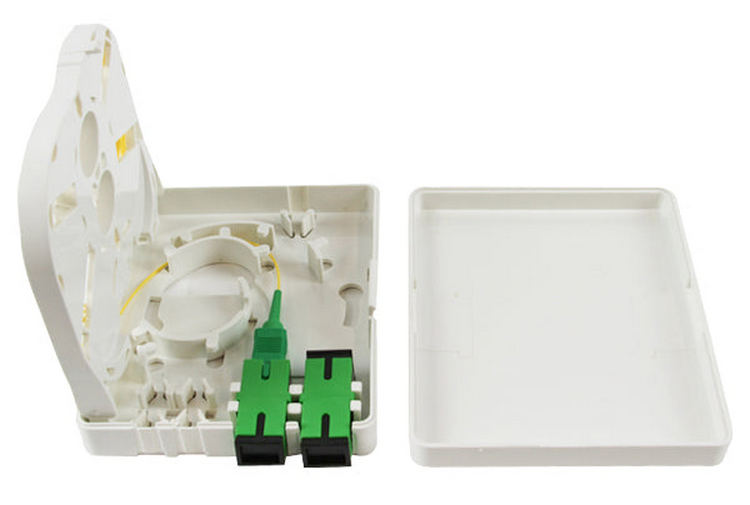

- Removable cover is convenient for maintenance
- Equipped with dust plug, dustproof

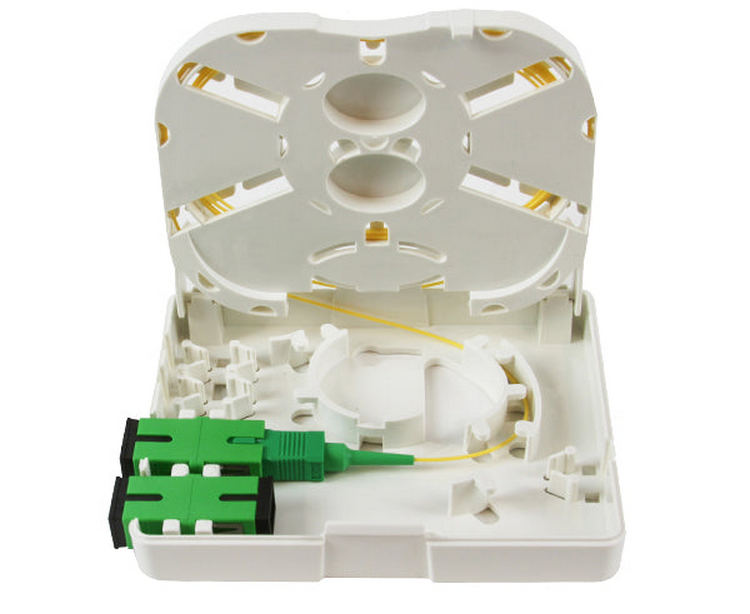

- Flip design for splice tray providing safe bend radius
- Supports factory terminated assemblies
- Size (mm) 100*80*23
- Cable inlet/outlet 3/2
- Cable Dia (mm) Φ3mm or 2*3mm
- Max splice capacity 4 cores(single)
- Suitable adapter SC/LC
|
