Products
| Coupler RJ45-RJ45 UTP Cat5e |
 |
|
This RJ45 adapter allows the in-line coupling of two ethernet cable assemblies. The RJ45 inline connector allows you to combine patch cords to extend the distance between RJ45 devices and ethernet sockets. The adapter is made from durable ABS resin, and features gold over nickel plated contacts for assured connectivity. |
|
| Coupler RJ45-RJ45 STP Cat.6 |
 |
|
Providing a female-to female feed-through connection between two patch cables, the Cat 6 inline coupler has 5 essential advantages, making this a competitive product in the market: 1) the low cost way to link several patch cables, 2) no hubs required, 3) the universal compatibility with blank panels, 4) lead-free and no solder with the Press-Fit technology. |
|

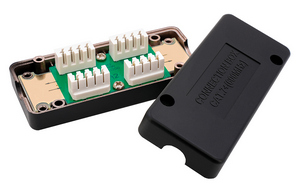

| Connection box STP cat.6 |
 |
Block to Block Inline Couplers are perfect for bridging two cables that may require extending, or where damage to a cable necessitates repair without having to re-run a cable.
|
|
| Connection module STP Cat.6A, toolless |
 |
- Connection module is used to repair or extend shielded Cat. 6A cables
- With this module all 4 or 8 wired installation cables with AWG 26/1 to 22/1, wire diameter from 0.4 to 0.76 mm
- Cable Jacket Diameter from 6 to 9.5 mm
- Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA 568A or 568B can be easily installed without any tool
- With the use of the STP type junction box, it is safe against electrical and magnetical interferences
- For Solid wire only
|
|
| Connection box STP cat.7 |
 |
Connection box CAT.7 is for connecting two installation cables. Module is also suitable for CAT.5e, CAT.6, CAT.6a, CAT.7 installation cables. |
|

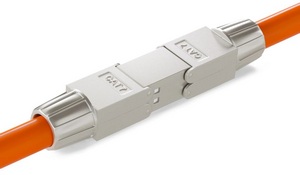

| Connection module STP Cat.7, toolless |
 |
This connector is designed for on-site use to connect or extend network installation cables. The metal housing ensures a durable, stable connection, against oxidation, corrosion and to prevent interference. This connector is the first choice when the cable length is insufficient and therefore needs to be extended. The tool-less design allows quick installation in about 2 minutes without special crimping tools. |
|

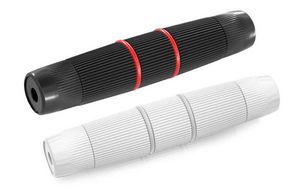

| Coupler IP67 RJ45-RJ45 UTP Cat.5e (waterproof) |
 |
- RJ45 slim connector for outdoor / industrial use
- 2x RJ45 not shielded female jack, Cat.5Е
- Support PoE/PoE+, 125Mhz
- IP68 waterproof case
- Contact resistance: < 10 mΩ
- For cables with diameters from 3.5 to 5.3 mm
- Temperature range: -10 to 70°C
- Length: 105.0 mm; Diameter: 18.0 mm
|
|

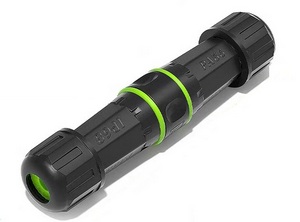

| Coupler IP68 RJ45-RJ45 UTP Cat.6 (waterproof) |
 |
- RJ45 slim connector for outdoor / industrial use
- 2x RJ45 not shielded female jack, Cat.6
- Support PoE/PoE+, 250Mhz
- IP68 waterproof case
- Contact resistance: < 10 mΩ
- For cables with diameters from 3.5 to 7.5 mm
- Temperature range: -10 to 70°C
- Length: 108.0 mm; Diameter: 22.5 mm
|
|

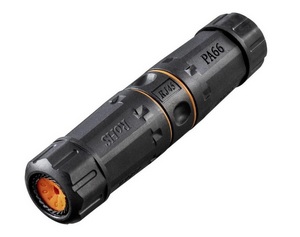

| Coupler IP68 RJ45-RJ45 STP Cat.6a (waterproof) |
 |
- RJ45 connector for external / industrial use
- 2x shielded RJ45 female jack, Cat.6A
- Support PoE/PoE+, 500Mhz
- IP68 waterproof cable gland housing
- Contact resistance: < 10 mΩ
- For cables with diameter from 3 to 8 mm
- Temperature range: 40-105 °C
- Length: 125 mm; Diameter: 27 mm
|
|
|
