Products

A telephone interface that uses a cable of twisted wire pairs and a modular jack with two, four or six contacts. RJ-11 is the common connector for plugging a telephone into the wall and the handset into the telephone.

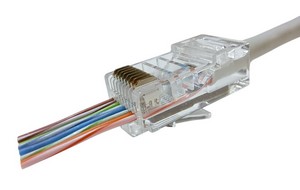

Category - 5e UTP
Connector Type - RJ-45 (8P8C)
Insulation Diameter - 0.96-1.02 mm
Conductor Diameter - 0.40-0.51 mm (26-24 AWG)
Contact Material - Phosphor Bronze, 50 µm Gold Plated
Cable Type - Round
Conductor Type - Solid/Stranded
Guide Element (Insert) - No Insert

Category - 6 UTP
Connector Type - RJ-45 (8P8C)
Insulation Diameter - 0.96-1.1 mm
Conductor Diameter - 0.50-0.57 mm (24-23 AWG)
Contact Material - Phosphor Bronze, 50 µm Gold Plated
Cable Type - Round
Conductor Type - Solid/Stranded
Guide Element (Insert) - No Insert

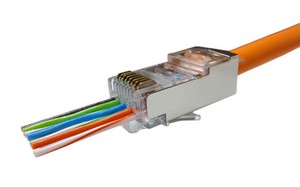

Cat.6A field termination plug is designed to support 10gb networks and can be easily terminated using parallel jaw pliers.

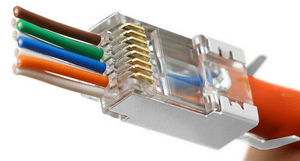

Termination is accomplished by placing the conductors into the proper wire slots in the wire cap. Placing the wire cap onto the plug, using a pliers to squeeze the wiring cap. All eight conductors are simultaneously terminated when the wire cap is squeezed. This process ensures quick, consistent, reliable terminations.

Category - 6a/7 STP
Connector Type - RJ-45 (8P8C)
Insulation Diameter - 1.35-1.45 mm
Conductor Diameter - 0.50-0.57 mm (24-23 AWG)
Contact Material - Phosphor Bronze, 50 µm Gold Plated
Cable Type - Round
Conductor Type - Solid/Stranded
Guide Element (Insert) - with Insert

RJ45 Boot Caps to safeguard your connectors from strains and pulls. It reduces exposures to snags and hanging to ensure your connector lasts long. Fits to cable UTP.
