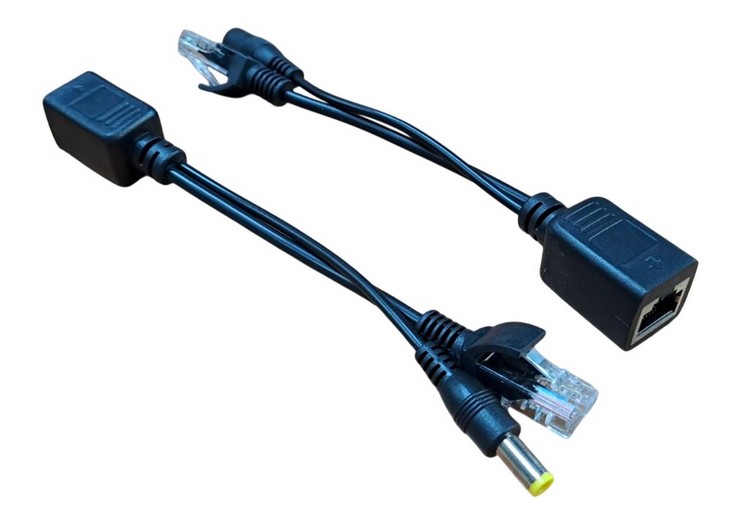

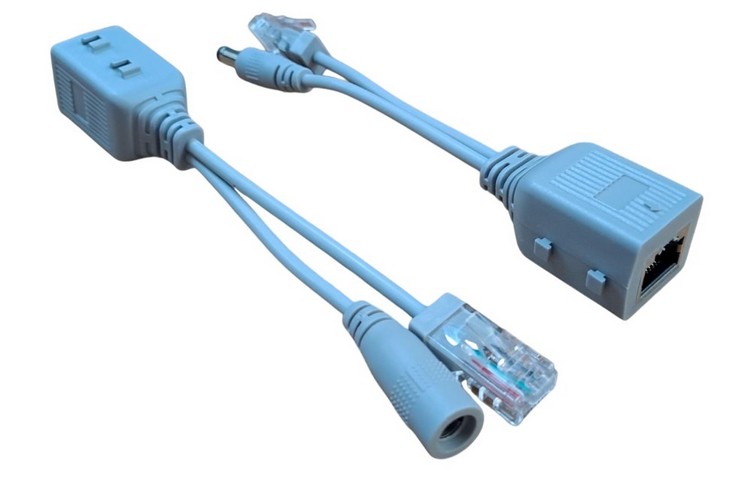

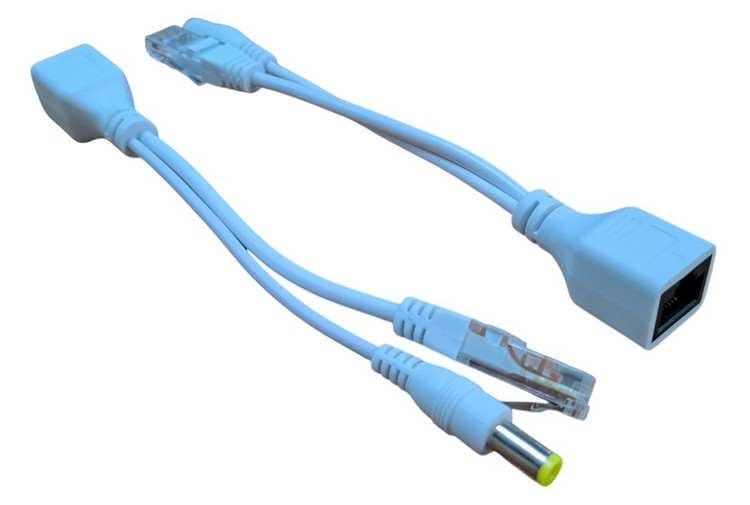

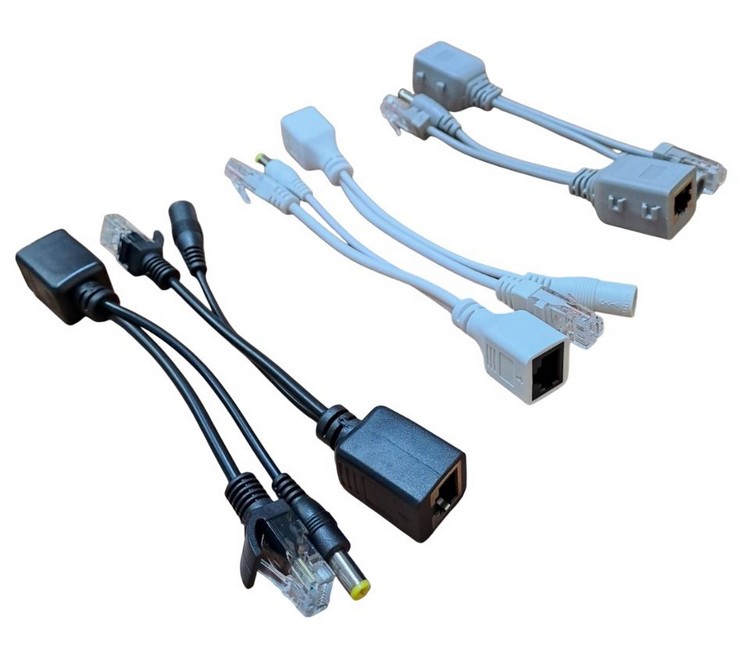

Simple Passive POE Injector Splitter Adapter Cable Kit



  • The complete Passive Power over Ethernet Kit contains two pieces - INJECTOR and SPLITTER.
  • Suitable for products that basically do not support Power Over Ethernet.
  • Applicable for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices.
  • Supplied standardly up to 60V. (The power adapter is not included - it is possible to use the power adapter of the powered device as access point, IP camera etc.)
  • Passive PoE`s range is normally form 30-40 metres/100- 130 ft (the real distance depends on the power supply, type of cable and powered device).
  • Data: PIN 1/2 & 3/6
  • Power: PIN 4/5+ & 7/8
  • Data in: Connects PC/HUB/Switch
  • Case of material: ABS
  • Ethernet Data rate: 10/100 Mbps
  • Ethernet Cable: TIA/EIA 568 Cat.5
  • Ethernet Cable Connector: RJ-45
  • Operating Temperature: 0 - 40 Degree
  • Storage Temperature: -40 - 70 Degree
  • Operating Humidity: 10% to 80% RH
  • Storage Humidity: 5% to 90% RH
  • DC PLUGS & JACKS: 2.5 x 5.5 x 12mm
