Products: Racks and open frames
| Floor Server Rack / Cabinet 19" DES/DE3-series 12U, 18U, 22U |
 |
Mounting capacity : 12U; 18U; 22U
Maximum load: 300 kg
Available sizes (U, Width x Depth x Height): - 12U 600x1000х730 mm
- 18U 600x1000х1000 mm
- 22U 600x600х1180 mm
- 22U 600x800х1180 mm
- 22U 600x1000х1180 mm
Front door type: glass or perforated Rear door type: 2 perforated doors Color: grey RAL 7035
|
|

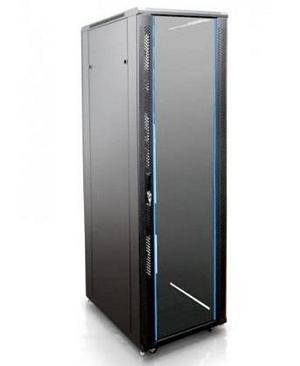

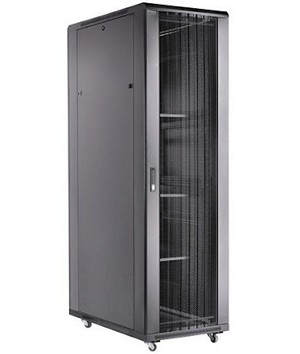

| Floor Rack / Cabinet 19" DTS-series 27U, 42U |
 |
|
Mounting capacity, U: 27; 42
Maximum load: 800 kg
Available sizes (U, Width x Depth x Height): - 27U 600x800x1400 mm
- 27U 600x1000x1400 mm
- 42U 600x600x2060 mm
- 42U 600x800x2060 mm
- 42U 600x1000x2060 mm
Front door type: glass Rear door type: 2 perforated doors Color: black RAL 9005
|
|
| Floor Rack 19" DTD-series 27U, 42U, 47U |
 |
|
Mounting capacity, U : 27; 42; 47 Maximum load : 800 kg Available dimensions (U, Width x Depth x Height) : - 27U 600x600x1400 mm
- 27U 600x800x1400 mm
- 27U 600x1000x1400 mm
- 42U 600x600x2060 mm
- 42U 600x800x2060 mm
- 42U 600x1000x2060 mm
- 47U 600x1000x2280 mm
- 42U 800x1000x2060 mm
Front door type : perforated Rear door type : 2 perforated doors Colour : black RAL 9005
|
|
| Floor Rack / Cabinet 19" QL-series 42U |
 |
|
Capacity, U : 42 Maximum load : 2400 kg Available sizes (U, Width x Depth х Height) : - 42U 600x1200x2100 mm
- 42U 800x1200x2100 mm
Front door type : perforated Rear door type : double perforated doors Color : black RAL 9005
|
|
| Wallmout racks 19" DTE Series |
 |
Height : 4U, 6U, 9U Maximum load : 30 kg Available sizes (U, width x depth): - 4U 600 x 350 mm
- 4U 600 x 450 mm
- 6U 600 x 350 mm
- 6U 600 x 450 mm
- 9U 600 x 450 mm
Front door type : glass Color : gray; black
|
|
| 19” Rack-Mount 4U |
 |
|
Height : 4U Maximum load : 80 kg Available sizes (U, width x depth) : Front door type : glass Color : gray; black
|
|
| 19” Rack-Mount 6U |
 |
|
Height : 6U Maximum load : 80 kg Available sizes (U, width x depth) : - 6U 600 x 450 mm
- 6U 600 x 600 mm
Front door type : glass Color : gray; black
|
|
| 19” Rack-Mount 9U |
 |
|
Height : 9U Maximum load : 80 kg Available sizes (U, width x depth): - 9U 600 x 450 mm
- 9U 600 x 600 mm
Front door type : glass Color : gray; black
|
|
| 19” Rack-Mount 12U |
 |
|
Height : 12U Maximum load : 80 kg Available sizes (U, width x depth): - 12U 600 x 450 mm
- 12U 600 x 600 mm
Front door type : glass Color : gray; black
|
|
| 19” Rack-Mount 15U |
 |
|
Height : 15U Maximum load: 80 kg Available sizes (U, width x depth): Front door type: glass Color: gray; black
|
|
| 19” Rack-Mount 18U |
 |
|
Height : 18U Maximum load: 80 kg Available sizes (U, width x depth): Front door type: glass Color: gray; black
|
|
| 19” Rack-Mount 22U |
 |
|
Height : 22U Maximum load : 80 kg Available sizes (U, width x depth): Front door type: glass Color: black |
|
| Fan Unit 120mm 220V with plug and fan grill for wall cabinets |
 |
This cooling fan is designed for installation on the top panel (roof) of wall-mounted cabinets to provide forced-air cooling for active equipment housed within. It can also be used as a spare component for fan units in floor-standing cabinets. |
|

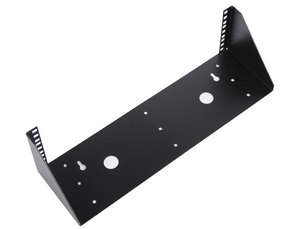

| 19” Rack-Mount 4U vertical |
 |
Capacity, U: 4
Maximum load: 50 kg
Available sizes (U, width x depth x height):
Front door type: glass
Color: gray; black |
|

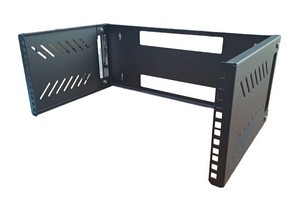

| Mounting frame 19" 3U |
 |
These 19" wall mounted frames are an ideal alternative where a lockable cabinet is not required. Their lightweight contruction means they can be mounted on virtually any wall. They are ideal for mounting patch panels and other shallow 19" rackmount equipment.
|
|
| Mounting frame 19" 4U |
 |
|
These 19" wall mounted frames are an ideal alternative where a lockable cabinet is not required. Their lightweight contruction means they can be mounted on virtually any wall. They are ideal for mounting patch panels and other shallow 19" rackmount equipment.
|
|
| Wallmount frame 19" 12U |
 |
|
These 19" wall mounted frames are an ideal alternative where a lockable cabinet is not required. Their lightweight contruction means they can be mounted on virtually any wall. They are ideal for mounting patch panels and other shallow 19" rackmount equipment.
|
|

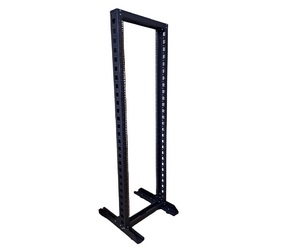

| Open frame 19" single 42U |
 |
|
- model: 42U-1R-600
- construction type: with 1 frame;
- effective height, U: 42U;
- external dimensions: 550(W)*600(D)*2039(H)
- color : black;
- maximum permissible static distribution load: 200 kg.
|
|

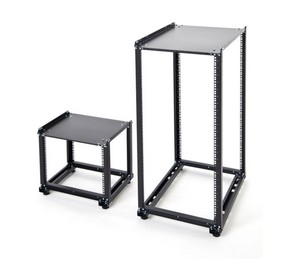

| Open frames 19" Lite series 9U, 27U |
 |
|
- model: 9U-2R-790 ; 27U-2R-790
- construction type: two-frame with roof;
- effective height, U: 9U, 27U;
- external dimensions:
- 9U: - 510(W)*800(D)*574(H)mm;
- 27U: - 510(W)*800(D)*1374(H)mm;
- depth: adjustable rear frame mount – 750/600/400mm;
- color : black;
- maximum permissible static distribution load: 300 kg.
|
|

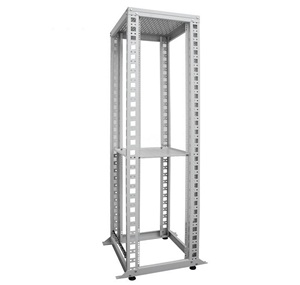

| Open frames 19" with fixed depth 32U, 42U |
 |
|
- model: 32U-400-2R ; 42U-400-2R
- construction type: two-frame with roof;
- effective height, U: 32U, 42U;
- external dimensions:
- 32U: - 550(W)*600(D)*1570(H)mm;
- 42U: - 550(W)*600(D)*2039(H)mm;
- depth between profiles: 400 mm;
- color: black or gray;
- maximum permissible static distribution load: 600 kg.
|
|

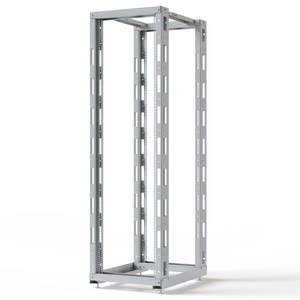

| Open frames 19" with adjustable depth 27U, 42U |
 |
- model:
- 27U-2R-800 (black)
- 27U-2R-800-7035 (grey)
- 42U-2R-800 (black)
- 42U-2R-800-7035 (grey)
- construction type: with two frames;
- effective height, U: 27U; 42U
- external dimensions:
- 27U: - 510(W)*800(D)*1374(H)mm;
- 42U: - 600(W)*800(D)*2041(H)mm;
- depth: adjustable rear frame mount – 750/620/580/450;
- color: black or gray;
- maximum permissible static distribution load: 800 kg.
|
|

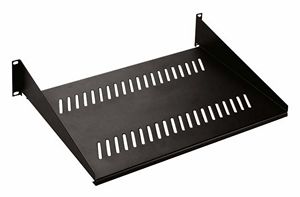

| Front shelves |
 |
|
This single-sided cantilever rack shelf is up to the task of holding simple networking equipment, including cable modems, external drives, etc.
|
|
| Fixed shelves, maximum static load of 100 kg |
 |
|
Heavy duty rack mount shelf with mounting ears for heavy equipment. Due to their stable, perforated steel sheet with a load capacity of 100kg, they are the optimal surface for components which are not 483 mm (19”) suitable. The fixing rails are can be adjusted if needed.
|
|
| Sliding shelves |
 |
|
Sliding Server Rack Cabinet Shelf offers a simple way to install non rack mountable equipment into a server cabinet or open server rack. Offering a weight capacity of up to 20 kg, the sliding rack shelf features a ventilated, cold-rolled steel shelf on two locking adjustable rails which allow the shelf to be installed into cabinets or racks with mounting depths from 600mm to 1000mm.
|
|
| 2U Height Drawer |
 |
A rack drawer is usefull to store all these important small things you always tend to forget (cables, tools, batteries, microphones, adapters, …). The drawer can be fixed on the front rack rails only. Easy moving drawer, thanks to telescopic slides. To prevent theft the drawer can be locked, 2 keys included. Can be mounted in our rack cases 6U to 42U.
|
|

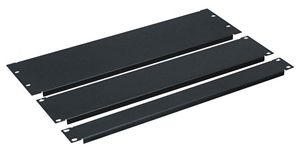

| Blanking Panel 19" |
 |
The Blank Panels suit to all 483 mm (19") profile rails of your network- or server cabinets. They are used to close non-used space within the 483 mm (19") area. This has positive effects in esthetic looks as well as optimited air ventilation performance. |
|

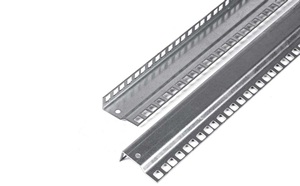

| L Rails support |
 |
|
Mounting rails are designed to support heavy equipment (swich, power supply, UPS) mounted in 19" RACK cabinets. Avalaible two lengths:
|
|

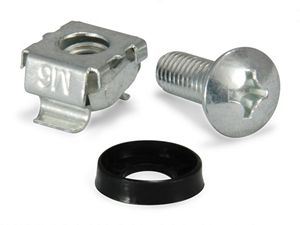

| Set of screw M6 |
 |
The M6 rack screws and cage nuts are perfect to have on hand for installing rack-mount hardware, such as your server, network or audio/video equipment. |
|

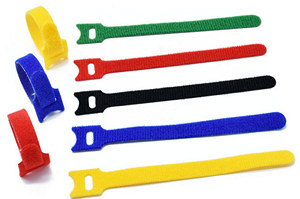

| Velcro strips |
 |
This is a safe alternative to plastic cable strips, since it is made of a soft material so that cables can not be damaged. Perfect for the storage of cables under control.
These strips are incredibly easy to use and perfect solution to secure.
|
|
| Mounting Profile 12U/22U/42U |
 |
|
42U zinc double rack strips, for use in all rack mount equipment. Punched with a standard 9.5mm square hole for all standard cage nuts. Made from 2.0mm zinc clear passivate finished steel, RoHs compliant. Fits to GS and GD-series cabinet.
|
|

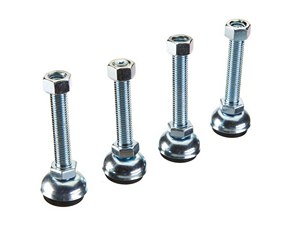

| Rack feet M12 |
 |
Screw mounted cabinet foot with M12 major diameter. 2x hexagonal nuts for level adjustment. Suitable for use with GD/GS-series rack cabinet. Galvanised steel screw with black plastic foot. 90mm high.
|
|
| Castors for rack |
 |
Heavy-duty castors for use on our floor standing data cabinets and server racks. Each set of 4 swivel castors includes a pair of braking wheels. |
|

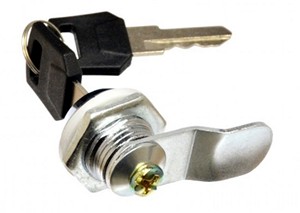

| Lock for side door |
 |
This type of lock is commonly used to secure the side panels of server cabinets. Turning the key involves turning the tongue until it goes over the edge of the door, locking it in the frame from the inside. The diameter of this lock is 22 mm. Includes 2 keys. |
|

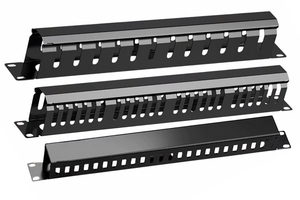

| Cable management 1U/2U |
 |
This cable management rack mount panel is a standard 19" 1U/2U plate that can be used as a cable organizer and provides a neat and clean appearance by for your cabling. The cable management panel is designed to fit a standard 19" wide rack and covers 1U or 2U of rack space. |
|

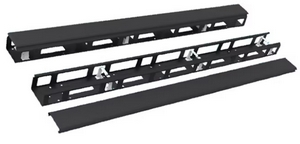

| Cable management 42U |
 |
This vertical cable manager is 42U in height, has a hinged front cover and is forward facing for easy access to cabling. It is used to organize cables on a relay rack which helps maintain proper airflow. Can be used only for 800mm rack wide or open frame racks. |
|
| Cable wire ring organizer plastic |
 |
Cable wire ring also called cable organizer, it is easy to install or uninstall. You can change the quantity and location as you like. It makes your network cables orderly, easy and effective.
|
|

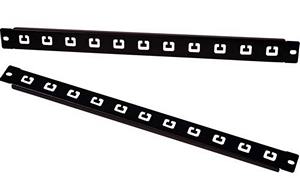

| Shunting rail 19" |
 |
This cable organizer is designed to fix cables in a server open frame rack or in a telecommunication cabinet, and organize cables in a cabinet. It can be installed at the front of the rack or at the back. The cable is fixed with nylon ties. The organizer has an anti-corrosion powder paint finish. |
|

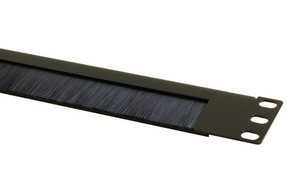

| Brush Panel 19" 1U |
 |
This brush mounting panel is designed for use with 19" racking systems. It is the ideal accessory to help keep your cables under control. Uses only one rack space 1U and includes one wide brush slot to accommodate all types of cables. The specially designed brush slot helps to protect cables from dust and other contaminants.
|
|

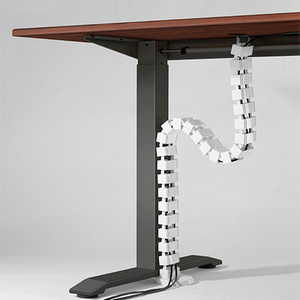

| Cable Spine flex organizer (Vertebrae) |
 |
This cable manager offers a convenient and aesthetically pleasing way to organize your desk while keeping cables out of sight. Made of durable plastic material, it is designed to provide a lifetime of use.
|
|

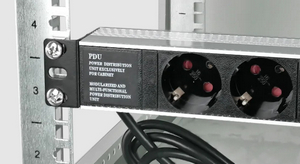

| Power Distribution Unit (PDU) 19" |
 |
|
The 1U Horizontal Rack Mount PDU delivers a cost-effective power distribution solution for your server rack or cabinet with 7/8/9-outlet (10A/16A).
|
|

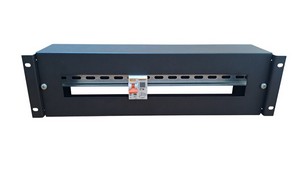

| 19" 3U Din Rail Panel for circuit interrupters |
 |
A 19-inch DIN rail allows you to store electrical components that have a DIN rail terminal - such as a ground fault circuit interrupter and DIN sockets - in a 19-inch server rack. The DIN rail is mounted on a 19-inch bracket that fits into any patch or server rack. Maximum capacity - 20 modules. |
|
| Grounding copper bar 19" |
 |
Grounding Bar is an easy solution to ground and protect your rack equipment from electrical surges and static electricity. Bridge individual rack equipment and create a direct path for the electricity to the ground. |
|
|
